Steel frame

Steel frame is a building technique with a "skeleton frame" of vertical steel columns and horizontal I-beams, constructed in a rectangular grid to support the floors, roof and walls of a building which are all attached to the frame. The development of this technique made the construction of the skyscraper possible.

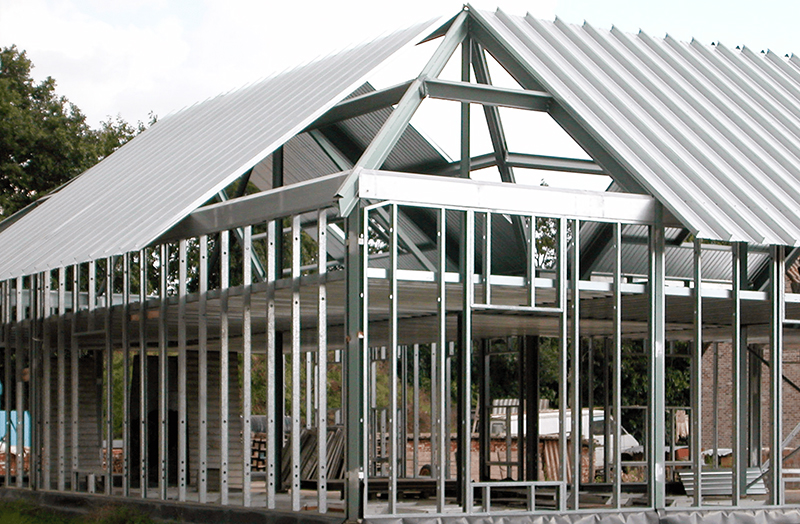

Thin sheets of galvanized steel can be cold formed into steel studsThin sheets of galvanized steel can be cold formed into steel studs for use as a structural or non structural building material for both external and partition walls in both residential, commercial and industrial construction projects. The dimension of the room is established with horizontal track that is anchored to the floor and ceiling to outline each room. The vertical studs are arranged in the tracks, and fastened at the top and bottom. The typical profiles used in residential construction are the C-shape stud and the U-shaped track, and a variety of other profiles. The profiles are coated with an zinc-layer (Z275) in the factory to prevent corrosion.

Steel framed walls can be designed to offer excellent thermal and acoustic properties - one of the specific considerations when building using cold formed steel is that thermal bridging can occur across the wall system between the outside environment and interior conditioned space. Thermal bridging can be protected against by installing a layer of externally fixed insulation along the steel framing - typically referred to as a 'thermal break’. The space between profiles is usable for plumbing and electrical installation.
